CAESES Overview

What is CAESES?

CAESES is a CAD modeler designed for businesses in automotive, marine and aerospace industries, helping users optimize shapes and create models for simulation-driven design operations. Key features include mesh morphing, parametric 2D sketching, structural analysis, and custom templates.

CAESES comes with surface generation tools, which enable engineers to create different shape versions, as well as track issues in packaging, cross-sectional areas or shape volumes while designing. Users can assign colors with a custom name and ID to geometric patches, helping them identify changes after modification. CAESES' integrated system lets team members connect with simulation packages and implement 3D post-processing capabilities to assess results.

CAESES enables businesses to manage and monitor the performance of variants by evaluating different characteristics, including resistance and pressure loss during the optimization process. The platform also helps engineers import existing geometries, apply free-form/box deformations, and reshape designs to enhance the flow and structural performance of previous models.

CAESES Overview

Pricing

Starting from
N/A

Pricing options

Free Trial
Value for money

Contact Friendship Systems for pricing details


CAESES Features

Devices
Business size
S M L
Markets
United States
Supported Languages
English

Media

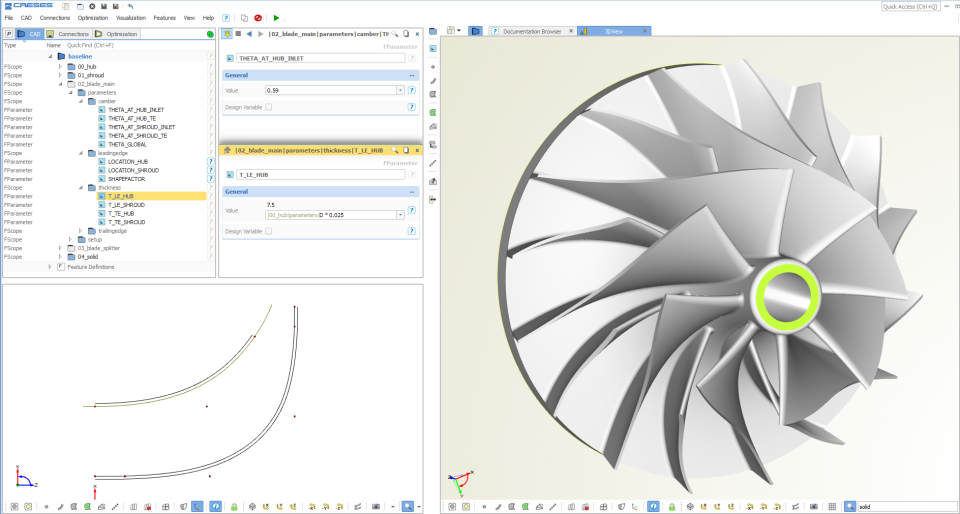

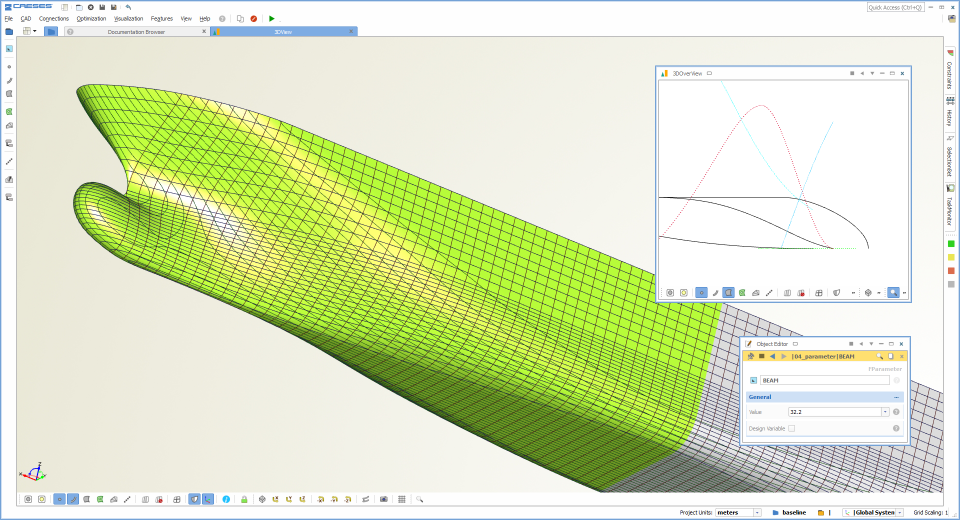

CAESES ship design optimization screenshot
